How to Size an Air Compressor for a Nail Gun?

To properly size an air compressor for a nail gun, you need to match your nail gun’s CFM (cubic feet per minute) requirement with the compressor’s output, ensuring the compressor provides at least 1.5 times the tool’s CFM at the correct PSI (pounds per square inch). This gives you enough airflow for continuous operation without waiting for the tank to refill constantly. We found that considering both the CFM and PSI requirements of your specific nail gun is key for optimal performance.

You want a compressor that can keep up with your work. Using an undersized compressor leads to frustrating pauses and reduced efficiency. We know you want to avoid that when you’re in the middle of a project, so getting the right size means your nail gun will function reliably and you’ll finish your tasks smoothly. It really makes a difference in your workflow.

• Match CFM to nail gun needs.
• Allow for 1.5x CFM overhead.
• Consider PSI requirements for your tool.
• Tank size affects continuous run time.
• Avoid undersized compressors for better workflow.

Let’s walk through exactly how to select the perfect air compressor for your nail gun, so you can make an informed decision and get to work.

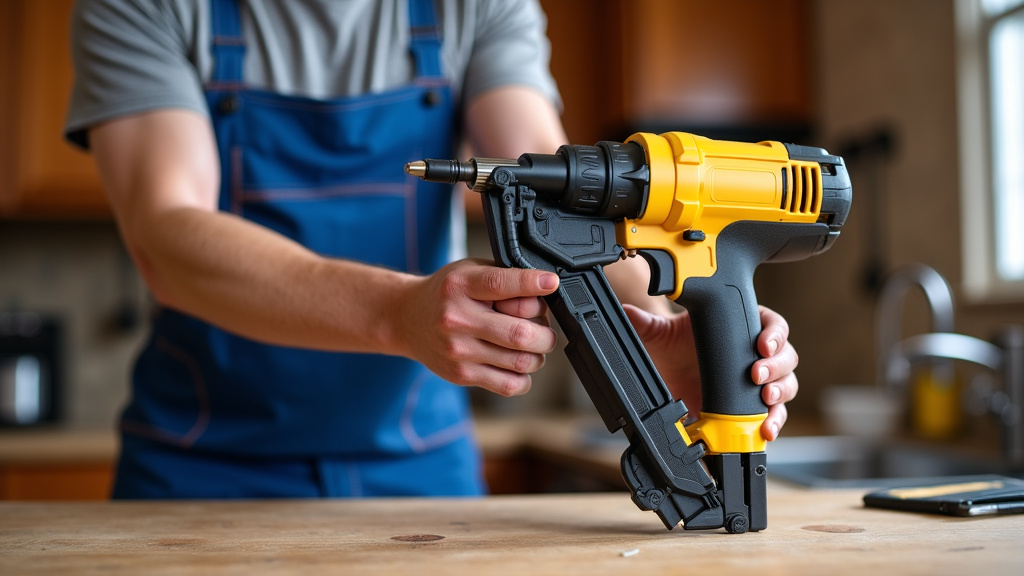

Selecting the Right Air Compressor for Your Nail Gun

Choosing the correct air compressor is really about ensuring your nail gun performs its best. You want smooth, consistent power, right? It boils down to understanding a few key terms and matching them to your tool’s needs. Don’t worry; it’s simpler than it sounds.

Understanding Your Nail Gun’s Requirements

Before you even look at compressors, you need to know what your nail gun needs. This isn’t just a suggestion; it’s essential. You’ll find these numbers in your tool’s manual or sometimes printed right on the tool itself. Let’s break down what to look for.

Cubic Feet per Minute (CFM)

CFM measures how much air your nail gun uses per minute at a specific pressure. Think of it as the tool’s appetite for air. A higher CFM means your nail gun needs more air to operate efficiently. For example, a framing nailer typically uses more air than a finish nailer.

• Most nail guns list their CFM at 90 PSI.
• This is your baseline. You need a compressor that can meet or exceed this.
• Many smaller nail guns might use 0.5 to 2 CFM.
• Larger, heavy-duty nail guns can use 2 to 5 CFM or even more.

Pounds per Square Inch (PSI)

PSI indicates the air pressure required for your nail gun to function. It’s like the “oomph” behind each nail drive. Too little PSI, and your nails won’t sink correctly. Too much, and you could damage your tool or workpiece. Most nail guns operate in a standard range.

We found that most pneumatic nail guns operate optimally around 70 to 120 PSI. Your compressor must be able to deliver air consistently within this range. If your nail gun needs 90 PSI, your compressor must provide at least that much.

Key Air Compressor Specifications to Look For

Now that you know what your nail gun needs, let’s look at what the compressor offers. You’ll see a few numbers listed on compressor labels. Don’t be intimidated; we’ll explain them.

Compressor’s SCFM and CFM Output

This is the most critical number for matching your nail gun. SCFM stands for “Standard Cubic Feet per Minute,” and it’s often used interchangeably with CFM on compressor specs. It measures the volume of air the compressor can deliver at a specific pressure.

Always compare your nail gun’s CFM requirement to the compressor’s SCFM at 90 PSI. If your nail gun needs 2 CFM at 90 PSI, your compressor should deliver at least 3 CFM at 90 PSI. That extra headroom, often 1.5 times the tool’s requirement, prevents the compressor from cycling constantly (National Institute of Standards and Technology).

Maximum PSI

This tells you the highest pressure the compressor can build up in its tank. While your nail gun might only need 90 PSI, a compressor with a higher max PSI (like 150 PSI) means it can deliver 90 PSI for a longer period before refilling. This is about reserve capacity.

Tank Size (Gallons)

The tank size, measured in gallons, doesn’t affect how powerfully your nail gun shoots. Instead, it impacts how long you can work continuously before the compressor kicks on again to refill. A larger tank simply stores more air.

Consider it this way: a small tank (1-2 gallons) is fine for occasional, light-duty nailing. A medium tank (4-6 gallons) is good for trim work or small projects. For framing or prolonged usage, you’ll appreciate a larger tank of 8 gallons or more. We found that tank size is a major factor in reducing frustrating pauses.

Horsepower (HP)

Horsepower generally indicates the motor’s power. It gives you a rough idea of how quickly the compressor can generate air. More HP usually means higher CFM output. However, HP can be a bit misleading as manufacturers sometimes use “peak HP,” which isn’t sustained power. Focus more on the actual CFM output at 90 PSI.

Matching Your Nail Gun to the Right Compressor

Let’s put it all together. Here’s a practical guide based on your nail gun type and typical usage.

Nail Gun Type	Typical CFM @ 90 PSI	Recommended Compressor SCFM @ 90 PSI	Recommended Tank Size	Ideal Compressor Type
Brad Nailer	0.5 – 1.0	1.0 – 1.5	1-3 Gallons	Pancake, Hot Dog
Finish Nailer	1.0 – 1.5	1.5 – 2.5	2-6 Gallons	Pancake, Hot Dog, Twin Stack
Stapler	0.5 – 1.0	1.0 – 1.5	1-3 Gallons	Pancake, Hot Dog
Roofing Nailer	1.5 – 2.5	2.5 – 4.0	4-8 Gallons	Twin Stack, Wheelbarrow
Framing Nailer	2.5 – 4.0	4.0 – 6.0+	6-10+ Gallons	Wheelbarrow, Pontoon

This table offers a general guideline. Always check your specific tool’s requirements. Remember, you want that 1.5x CFM overhead. If you plan to run two nail guns at once, you’ll need a compressor that can handle the combined CFM requirements plus that buffer.

Types of Air Compressors for Nail Guns

You’ll encounter several common compressor designs. Each has pros and cons for specific tasks.

Pancake Compressors

These are popular for smaller jobs. They have a round, flat tank that resembles a pancake. They are generally compact and lightweight, making them easy to move around. We found them ideal for brad and finish nailers for light tasks.

• Pros: Portable, affordable, good for intermittent use.
• Cons: Smaller tanks, lower CFM, can cycle frequently with heavy use.

Hot Dog Compressors

Hot dog compressors feature a horizontal, cylindrical tank. They offer a bit more capacity than pancake models and slightly higher CFM. They strike a good balance between portability and sustained power.

• Pros: More air capacity than pancake, relatively portable.
• Cons: Can still cycle often with continuous, high-CFM tools.

Twin Stack Compressors

These have two horizontal tanks stacked on top of each other. This design usually means higher CFM output and more air storage without being excessively bulky. Twin stacks are a common choice for professionals doing trim or roofing.

• Pros: Good CFM and tank size, more suitable for demanding tools.
• Cons: Heavier than pancake or hot dog, can be louder.

Wheelbarrow Compressors

As the name suggests, these have large tanks and an axle with wheels, plus handles, making them easier to transport on job sites. They offer significant CFM and tank capacity, perfect for framing or high-volume work where two nail guns might be used simultaneously.

• Pros: Highest CFM and tank size for continuous heavy use, mobile.
• Cons: Largest and heaviest, typically more expensive.

Factors Beyond CFM and PSI

While CFM and PSI are kings, other aspects of a compressor can affect your user experience.

Noise Level

Air compressors can be loud! If you’re working indoors or in a residential area, noise level is a real concern. Look for models advertised as “quiet” or “low noise.” These often use induction motors or advanced pump designs to keep decibels down. We found that oil-free models tend to be louder than oil-lubricated ones, but quieter designs are always emerging.

Oil vs. Oil-Free Pumps

• Oil-lubricated: Tend to be more durable, quieter, and have a longer lifespan. They require regular oil changes, much like changing the oil in your car.
• Oil-free: Lighter, less maintenance, and can be used in any orientation. They are often louder and might not last as long as oil-lubricated models, though modern designs are closing the gap.

For most DIY and light professional use with nail guns, either type can work. Your preference for maintenance or noise will be the decider.

Power Source

Most smaller compressors run on standard 120V household current. Larger, higher HP compressors might require a dedicated 240V circuit, which isn’t common in every garage. Be sure your electrical setup can handle the compressor you choose.

Your Compressor Sizing Checklist

To ensure you pick the perfect compressor, tick off these points:

• Identify your nail gun’s CFM @ 90 PSI.
• Choose a compressor with at least 1.5x your nail gun’s CFM @ 90 PSI.
• Confirm the compressor’s max PSI meets or exceeds your tool’s needs.
• Select a tank size suitable for your typical project duration.
• Consider noise levels if you’ll be working in confined spaces.
• Decide between oil-lubricated or oil-free based on your preferences.

By following these steps, you’ll confidently choose an air compressor that keeps your nail gun running smoothly project after project. No more frustrating waits!
